FSVPB_C_A
(Dimple Bar)
The actual product may differ from the displayed image.

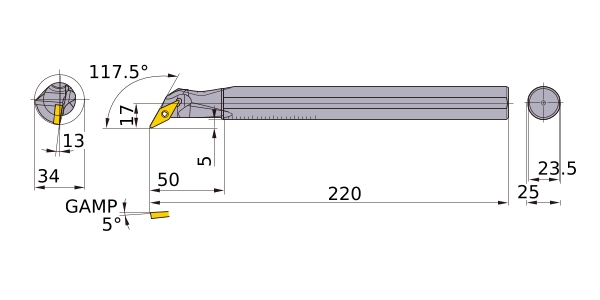

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | |
Unit of Length | M |
DMIN | 34 |
DCON | 25 |
KAPR | 117.5° |
LF | 220 |
LDRED | 50 |
WF | 17 |
H | 23.5 |
WF2 | 5 |
GAMF | 13 |
RE | 0.8 |
Peripheral effective cutting edge count: ZEFP | 1 |
Insert Number | VB__1604 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
