Boring >FSVUB_C_A >FSVUB2520L-11A

Boring

FSVUB_C_A
（Dimple Bar）

FSVUB2520L-11A

Product Information

  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 5 times the diameter (Carbide shank is 7 to 8 times the diameter).
  • Employs positive insert 5°,7°,11°.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

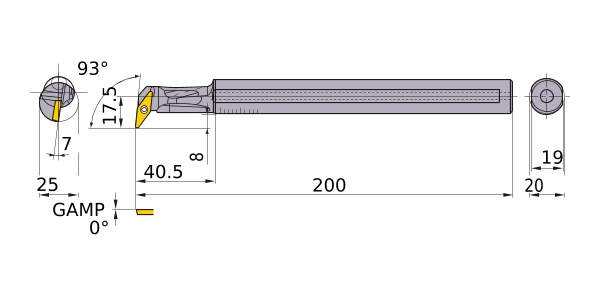

DMIN 25
DCON 20
KAPR 93°
LF 200
LDRED 40.5
WF 17.5
H 19
WF2 8
GAMF 7
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__1103
