Boring >C_SCLC_C_C >C09-08SCLCR04-090-C

Boring

C_SCLC_C_C


C09-08SCLCR04-090-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

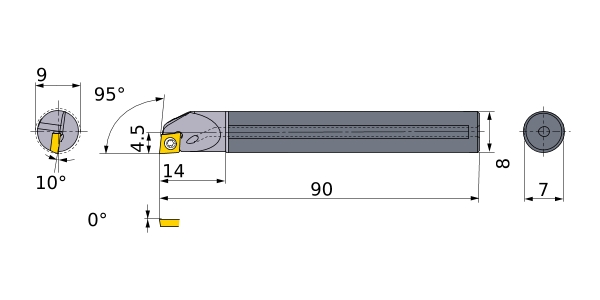

DMIN 9
DCONMS 8
KAPR 95°
LF 90
LDRED 14
WF 4.5
H 7
GAMP 0°
GAMF 10°
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__04T0
