Boring >C_SCLC_C_C >C12-10SCLCL06-140-C

Boring

C_SCLC_C_C


C12-10SCLCL06-140-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock

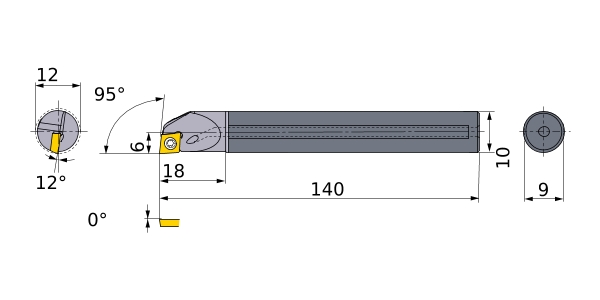

Unit of Length M
DMIN 12
DCONMS 10
KAPR 95°
LF 140
LDRED 18
WF 6
H 9
GAMP 0°
GAMF 12°
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__0602
