Boring >C_SCLP_C_C >C16-12SCLPL09-140-C

Boring

C_SCLP_C_C


C16-12SCLPL09-140-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

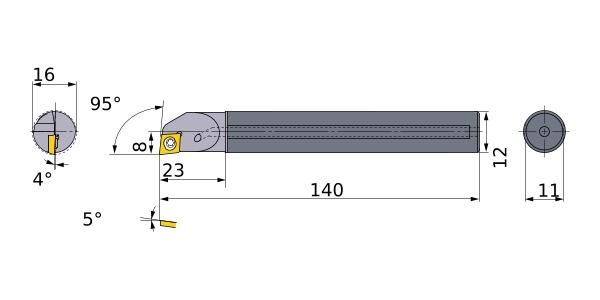

DMIN 16
DCONMS 12
KAPR 95°
LF 140
LDRED 23
WF 8
H 11
GAMP 5°
GAMF 4°
Peripheral effective cutting edge count: ZEFP 1
Insert Number CP__0903
2D Model (DXF)
CAD data name Download
C16-12SCLPL09-140-C
CAD
