Boring >C_SCLP_C_C >C18-16SCLPR09-180-C

Boring

C_SCLP_C_C


C18-16SCLPR09-180-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

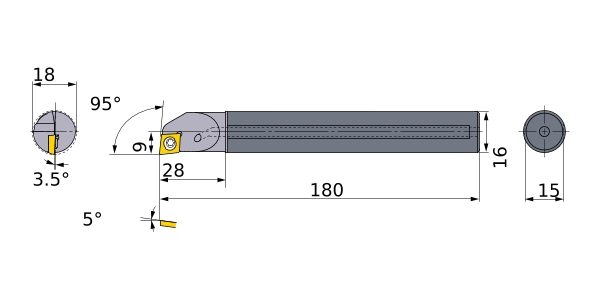

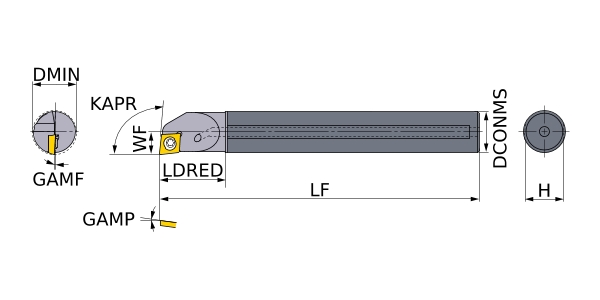

DMIN 18
DCONMS 16
KAPR 95°
LF 180
LDRED 28
WF 9
H 15
GAMP 5°
GAMF 3.5°
Peripheral effective cutting edge count: ZEFP 1
Insert Number CP__0903
2D Model (DXF)
CAD data name Download
C18-16SCLPR09-180-C
CAD
