Boring >C_STUP_C_C >C22-20STUPR11-180-C

Boring

C_STUP_C_C


C22-20STUPR11-180-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

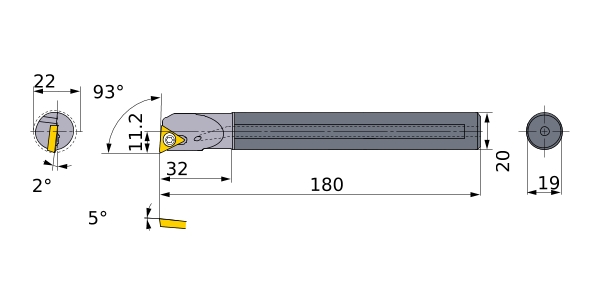

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 22
DCONMS 20
KAPR 93°
LF 180
LDRED 32
WF 11.2
H 19
GAMP 5°
GAMF 2°
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__1103
