Boring >S_STUP_C_S >S27-25STUPL11-150-C

Boring

S_STUP_C_S


S27-25STUPL11-150-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

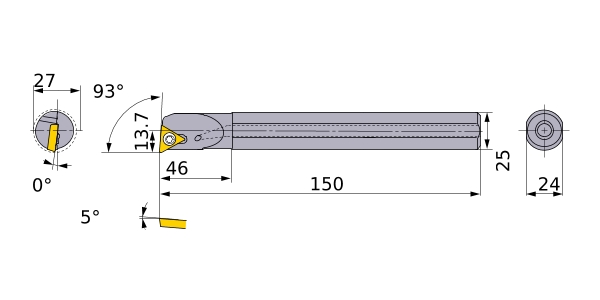

DMIN 27
DCONMS 25
KAPR 93°
LF 150
LDRED 46
WF 13.7
H 24
GAMP 5°
GAMF 0°
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__1103
2D Model (DXF)
CAD data name Download
S27-25STUPL11-150-C
