Boring >C_SCLC >C05-04SCLCR03-080

Boring

C_SCLC


C05-04SCLCR03-080

Product Information

  • Carbide shank
  • Screw-on type
  • 7°positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

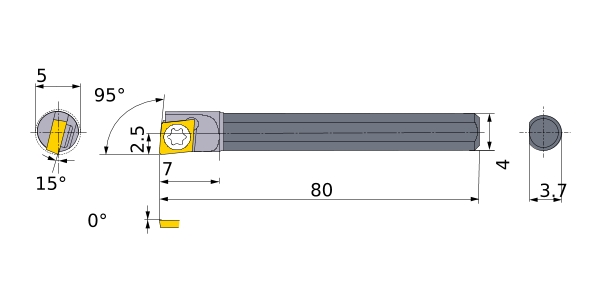

DMIN 5
DCONMS 4
KAPR 95°
LF 80
LDRED 7
WF 2.5
H 3.7
GAMP 0°
GAMF 15°
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__03S1
2D Model (DXF)
CAD data name Download
C05-04SCLCR03-080
CAD
Disclaimer
