Boring >C_SWUC >C06-05SWUCL02-080

Boring

C_SWUC


C06-05SWUCL02-080

Product Information

  • Carbide shank
  • Screw-on type
  • 7°positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

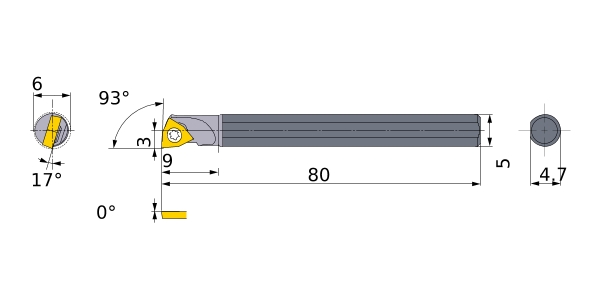

DMIN 6
DCONMS 5
KAPR 93°
LF 80
LDRED 9
WF 3
H 4.7
GAMP 0°
GAMF 17°
Peripheral effective cutting edge count: ZEFP 1
Insert Number WC__0201
2D Model (DXF)
CAD data name Download
