Drills >MAE_MAS >MAS0320LB

Drills

MAE_MAS


MAS0320LB

Product Information

  • Pre-hole drilling for rolled tap.
  • Helical through coolant hole enables high speed machining (MAS type).
  • Specialized in aluminium and cast iron drilling.
  • High hole accuracy.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Stock
Unit of Length M

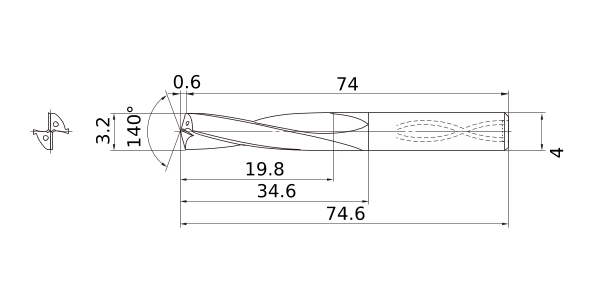

DC 3.2
DCON 4
SIG 140°
LF 74
OAL 74.6
LU 19.8
LCF 34.6
FHA 10°
ld 6
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.005
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MAS0320LB
CAD
