VSD
(Straight shank)
The actual product may differ from the displayed image.

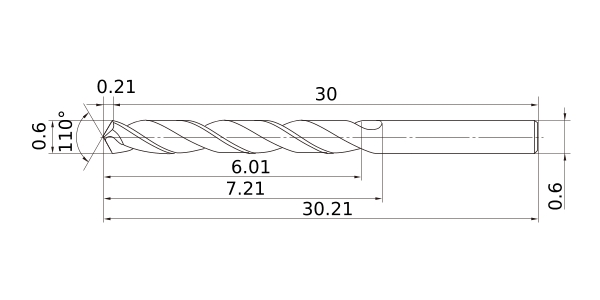

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | |
Unit of Length | M |
DC | 0.6 |
DCON | 0.6 |
SIG | 110° |
LF | 30 |
OAL | 30.21 |
LU | 6.01 |
LCF | 7.21 |
PL | 0.21 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.01 |
Type of Coolant | External |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
