VSD
（Straight shank）
VSDD0080
The actual product may differ from the displayed image.

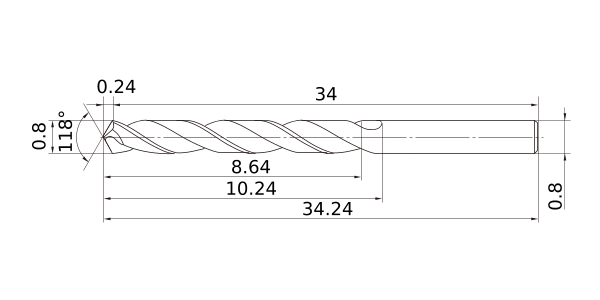

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Stock |
|
| Unit of Length | M |
| DC | 0.8 |
| DCON | 0.8 |
| SIG | 118° |
| LF | 34 |
| OAL | 34.24 |
| LU | 8.64 |
| LCF | 10.24 |
| PL | 0.24 |
| Effective Cutting Edge | 2 |
| Max. Cutting EdgeDiameter Tolerance | 0 |
| Min. Cutting EdgeDiameter Tolerance | -0.01 |
| Type of Coolant | External |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
