VSD
(Straight shank)
The actual product may differ from the displayed image.

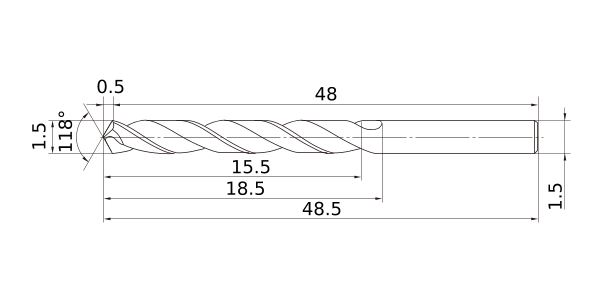

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | |
Unit of Length | M |
DC | 1.5 |
DCON | 1.5 |
SIG | 118° |
LF | 48 |
OAL | 48.5 |
LCF | 18.5 |
PL | 0.5 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.014 |
Type of Coolant | External |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
