MNS0330X30DB

Product Information

  • Four coolant holes is ideal for MQL applications

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Stock
Unit of Length M

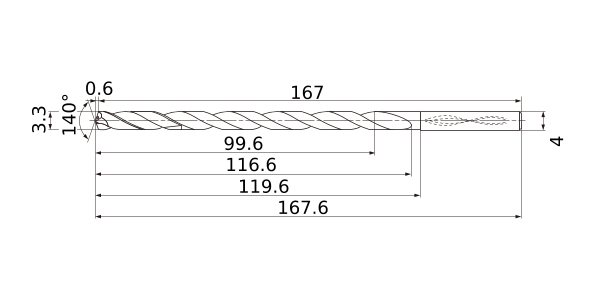

DC 3.3
DCON 4
SIG 140°
LF 167
OAL 167.6
LH 119.6
LU 99.6
LCF 116.6
FHA 30°
ld 30
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
