MNS
(WSTAR)
The actual product may differ from the displayed image.

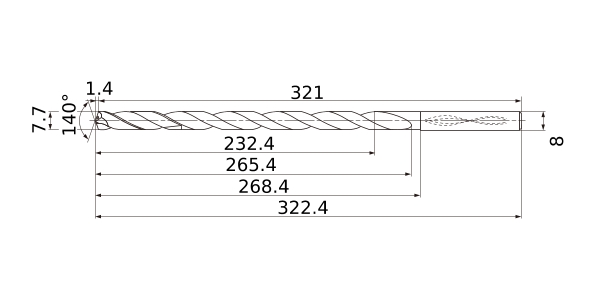

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | TF15 |
Stock | ![]() |
Unit of Length | M |
DC | 7.7 |
DCON | 8 |
SIG | 140° |
LF | 321 |
OAL | 322.4 |
LH | 268.4 |
LU | 232.4 |
LCF | 265.4 |
FHA | 30° |
ld | 30 |
PL | 1.4 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.022 |
Type of Coolant | Internal |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
