MHS0120L025B

Product Information

  • High backling strength and unique double margin.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Stock

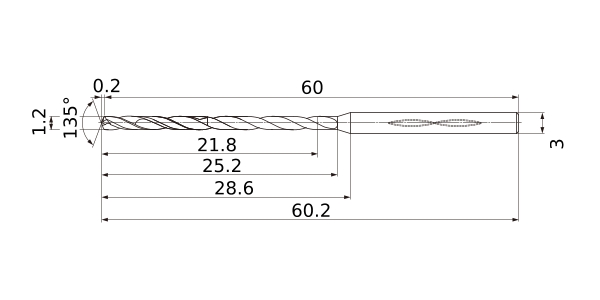

Unit of Length M
DC 1.2
DCON 3
SIG 135°
LF 60
OAL 60.2
LH 28.6
LU 21.8
LCF 25.2
FHA 25°
ld 18
PL 0.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.01
Min. Cutting EdgeDiameter Tolerance -0.002
Type of Coolant Internal
