MMS
(WSTAR)
The actual product may differ from the displayed image.

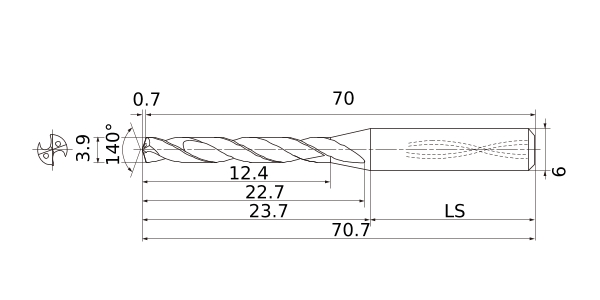

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | DP7020 |
Stock | |
Unit of Length | M |
DC | 3.9 |
DCON | 6 |
SIG | 140° |
LF | 70 |
OAL | 70.7 |
LH | 23.7 |
LU | 12.4 |
LCF | 22.7 |
FHA | 30° |
ld | 3 |
PL | 0.7 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.018 |
Type of Coolant | Internal |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
