MNS0300S-DIN

Product Information

  • Optimum flute and cutting edge geometry for machining of aluminium alloy

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Stock
Unit of Length M

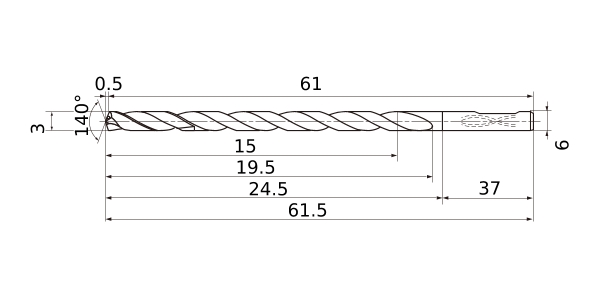

D1 3
D4 6
DC 3
DCON 6
SIG 140°
LF 61
OAL 61.5
LH 24.5
LU 15
LCF 19.5
LS 37
FHA 30°
ld 3
PL 0.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.016
Min. Cutting EdgeDiameter Tolerance 0.004
Type of Coolant Internal
