Drills >PILOT-MVS >MVS0140X02S030

Drills

PILOT-MVS
（WSTAR）

MVS0140X02S030

Product Information

  • Straight cutting edge that combines the chips evacuation and cutting edge strength improvement.
  • Double margin achieves the optimum balance and precision in small diameter drill.

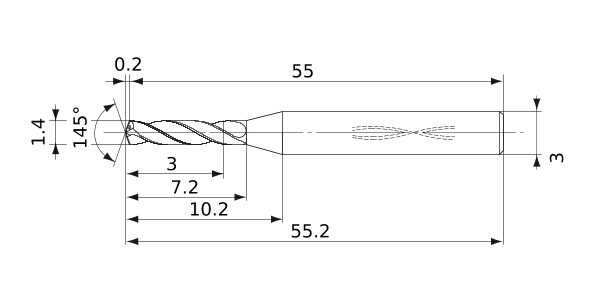

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Stock
Unit of Length M
DC 1.4
DCON 3
SIG 145°
LF 55
OAL 55.2
LH 10.2
LU 3
LCF 7.2
FHA 30°
ld 2
PL 0.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.014
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0140X02S030
CAD
