Drills >DSAS >DSAS0340X05S060

Drills

DSAS
（SOLID CARBIDE DRILL WITH INTERNAL COOLANT）

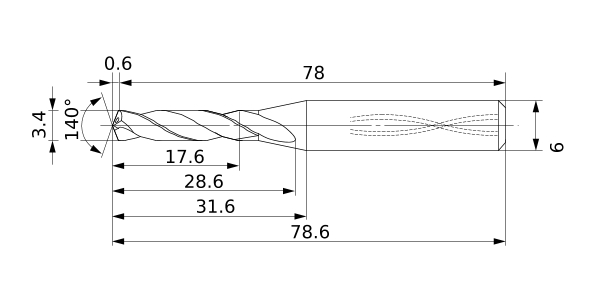

DSAS0340X05S060

Product Information

  • TRI-Cooling Technology
  • STRAIGHT CUTTING EDGE WITH DEDICATED HONING
  • DP9020 GRADE FOR MACHINING HEAT RESISTANT ALLOYS
  • SPECIAL MARGIN

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP9020
Stock
Unit of Length M
DC 3.4
DCON 6
SIG 140°
LF 78
OAL 78.6
LH 31.6
LU 17.6
LCF 28.6
FHA 28°
ld 5
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
DSAS0340X05S060
