Drills >DLE_120 >DLE0600S060P120

Drills

DLE_120
(Leading Drill Series)

DLE0600S060P120

Product Information

  • The thinning pocket promotes smooth chip discharge and brings excellent hole position accuracy.
  • Sharp cutting edge and high fracture resistance.
  • SINGLE ANGLE POINT
  • FOR AUTOMATIC LATHES

The actual product may differ from the displayed image.

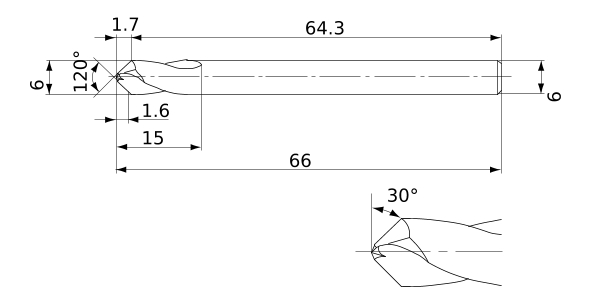

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Stock
Unit of Length M
DC 6
DCON 6
KAPR 30°
SIG 120°
LF 64.3
OAL 66
LU 1.6
LCF 15
FHA 25°
PL 1.7
Effective Cutting Edge 2
Type of Coolant External
2D Model (DXF)
CAD data name Download
DLE0600S060P120
CAD

3D Light Model (STP,STL)
CAD data name Download
DLE0600S060P120
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
