Drills >DLE_145 >DLE0700S070P145

Drills

DLE_145
（Leading Drill Series）

DLE0700S070P145

Product Information

  • The thinning pocket promotes smooth chip discharge and brings excellent hole position accuracy.
  • Sharp cutting edge and high fracture resistance.
  • SINGLE ANGLE POINT
  • FOR AUTOMATIC LATHES

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Stock
Unit of Length M

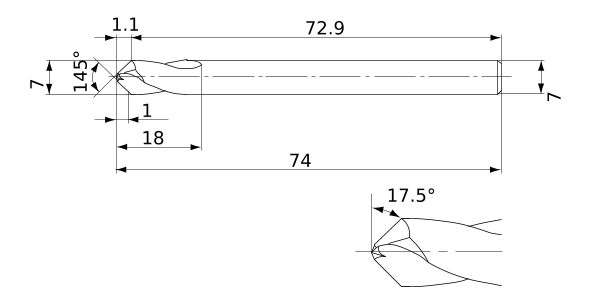

DC 7
DCON 7
KAPR 17.5°
SIG 145°
LF 72.9
OAL 74
LU 1
LCF 18
FHA 25°
PL 1.1
Effective Cutting Edge 2
Type of Coolant External
