Drills >DFAS >DFAS0390X03S040

Drills

DFAS
（SOLID CARBIDE FLAT BOTTOM DRILLS FOR HIGH EFFICIENCY DRILLING OF VARIOUS APPLICATIONS）

DFAS0390X03S040

Product Information

  • High efficiency drilling of various applications

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP102A
Stock
Unit of Length M

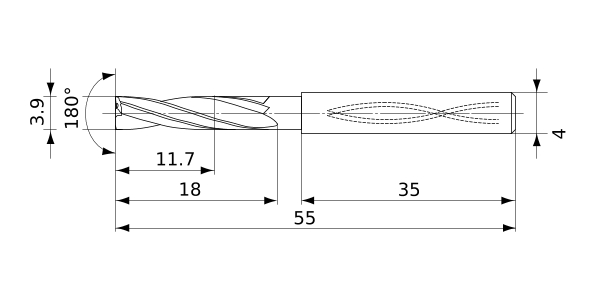

DC 3.9
DCON 4
SIG 180°
OAL 55
LU 11.7
LCF 18
LS 35
FHA 27°
ld 3
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
DFAS0390X03S040
CAD
