Drills >RX1S_HTP >RX1S23000H7DHTP5

Drills

RX1S_HTP
（HELICAL FLUTE HEAD FOR THROUGH HOLES）

RX1S23000H7DHTP5

Product Information

  • With side coolant holes in the flutes
  • FOR A WIDE RANGE OF MATERIALS
  • SIMPLE TO CHANGE HEAD WITH HIGH RUNOUT ACCURACY

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade RP1010
Stock
Unit of Length M

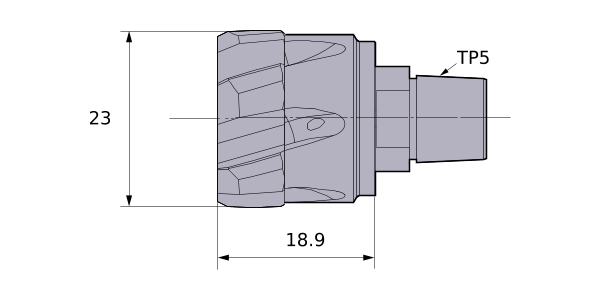

DC 23
LH 18.9
CRKS TP5
Peripheral effective cutting edge count: ZEFP 6
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
RX1S23000H7DHTP5
