Indexable End Mills >AJX >AJX06R223SA20L

Indexable End Mills

AJX
(MULTI FUNCTIONAL MILLING)

AJX06R223SA20L

Product Information

  • Economical due to the use of 3 cutting edges.
  • Suitable for high feed cutting.
  • Excellent chip disposal due to the standardization of coolant hole.
  • High rigidity due to the employment of double clamp mechanics.

The actual product may differ from the displayed image.

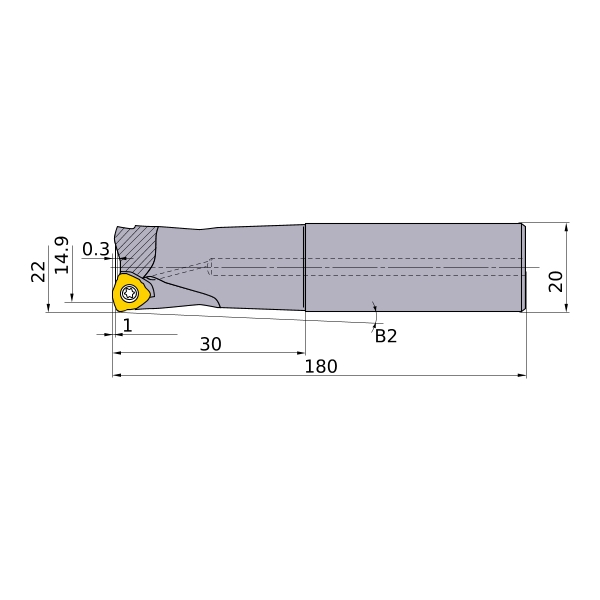

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
AZ 0.3
DC 14.9
DCX 22
DCON 20
RMPX 1
LF 180
LH 30
APMX 1
GAMP +4°
GAMF -6°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
AJX06R223SA20L
CAD

3D Detail Model (STP,STL)
CAD data name Download
AJX06R223SA20L
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AJX06R223SA20L_MR1_5
1.5 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
