Indexable End Mills

DCCC
（INDEXABLE END MILL FOR DEEP SHOULDER MILLING AND SLOTTING）

DCCCR4015S40

Product Information

  • Different helical flute angles prevents chattering.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

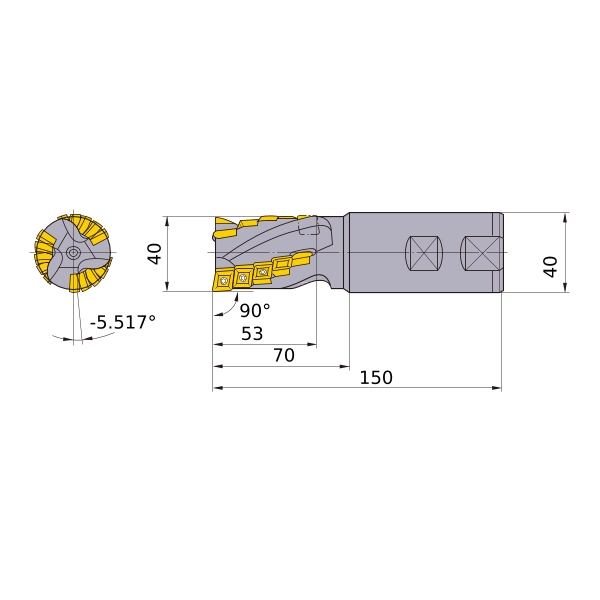

DC 40
DCON 40
KAPR 90°
L6 19
LF 150
LH 70
H 40
APMX 53
GAMP -8°
GAMF -5.517°
Cutting item count: CICT 15
Peripheral effective cutting edge count: ZEFP 3
Face effective cutting edge count: ZEFF 3
2D Model (DXF)
CAD data name Download
DCCCR4015S40
