Indexable End Mills

PMR


PMR405003A22R

Product Information

  • Unique shape of curved edge gives high rigidity and low resistance.
  • Anti Fly Insert mechanism
  • 2 directional cutting with large overhang.
  • 2 directional cutting with large overhang.
  • Tough body

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

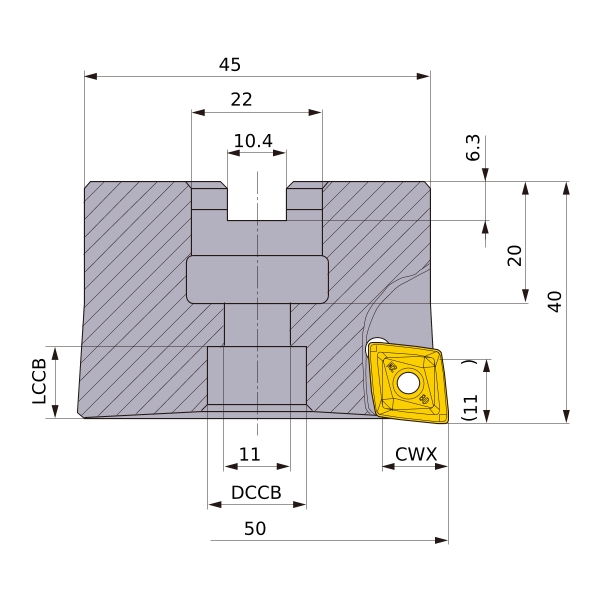

DC 50
DCON 22
DCSFMS 45
DAH 11
L8 6.3
LF 40
CBDP 20
KWW 10.4
APMX 11
GAMP +5°
GAMF -6°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
PMR405003A22R
CAD
