Indexable End Mills

TSMP


TSMPR402S32

Product Information

  • 86- rhombic shape positive insert gives high cutting edge strength and excellent sharpness.
  • Shoulder milling and inversed spot facing are also possible.
  • T-groove order number 14,18 and 22 are available.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 40
DCON 32
BD 20
KAPR 90°
L5 14
L6 19
L16 36
LF 130
LH 51.2
LU 46
APMX 18
GAMP +6°
GAMF -3°
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download

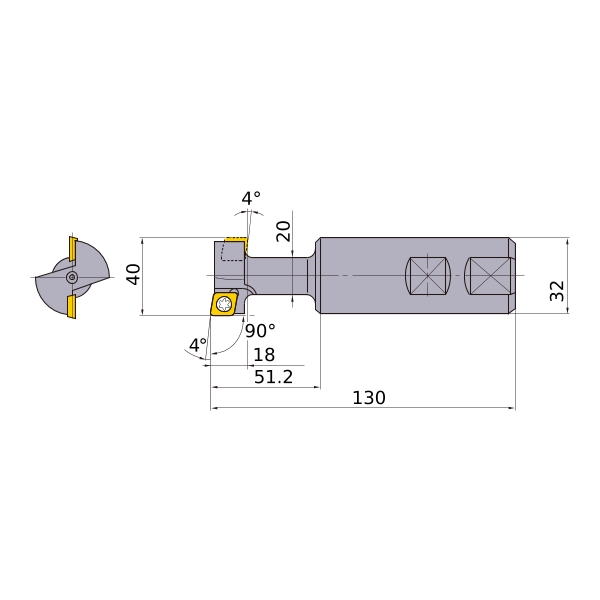

TSMPR402S32
CAD
