Mitsubishi Materials Web Catalogue | Products Information | Indexable End Mills | SRF

S-shaped cutting edge provides sharpness similar to that of solid ball nose end mills.
Highly accurate corner radius tolerance allows for high precision finishing.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Hand

R

Stock

Unit of Length

M

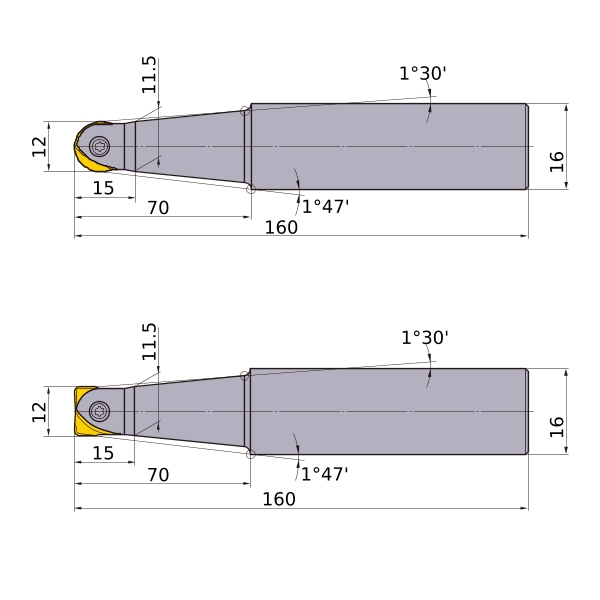

DC

12

DCON

16

BD

11.5

B2

1°47'

B5

1°30'

LF

160

LH

70

LU

15

Cutting item count: CICT

1

Peripheral effective cutting edge count: ZEFP

2
