Indexable End Mills

SRF


SRFH12S12LW

Product Information

  • S-shaped cutting edge provides sharpness similar to that of solid ball nose end mills.
  • Highly accurate corner radius tolerance allows for high precision finishing.

The actual product may differ from the displayed image.

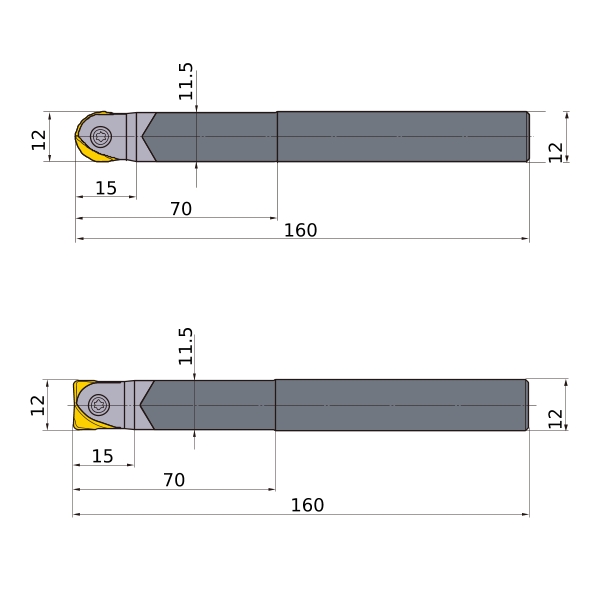

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 12
DCON 12
BD 11.5
LF 160
LH 70
LU 15
Cutting item count: CICT 1
Peripheral effective cutting edge count: ZEFP 2
2D Model (DXF)
CAD data name Download
SRFH12S12LW_SRBT12
CAD
SRFH12S12LW_SRFT12
CAD
SRFH12S12LW_SUFT12R05
CAD
SRFH12S12LW_SUFT12R10
CAD
SRFH12S12LW_SUFT12R20
CAD
SRFH12S12LW_SUFT12R30
CAD

3D Detail Model (STP,STL)
CAD data name Download
SRFH12S12LW
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SRFH12S12LW_MR0_5
0.5 CAD CAD
SRFH12S12LW_MR1
1 CAD CAD
SRFH12S12LW_MR2
2 CAD CAD
SRFH12S12LW_MR6
6 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
