Indexable End Mills >AXD4000 >AXD4000R403SA32ELB

Indexable End Mills

AXD4000
（For Aluminium Alloy）

AXD4000R403SA32ELB

Product Information

  • High spindle speeds possible.
  • Excellent wall accuracy.
  • Multi functional milling.
  • Low resistance inserts.

The actual product may differ from the displayed image.

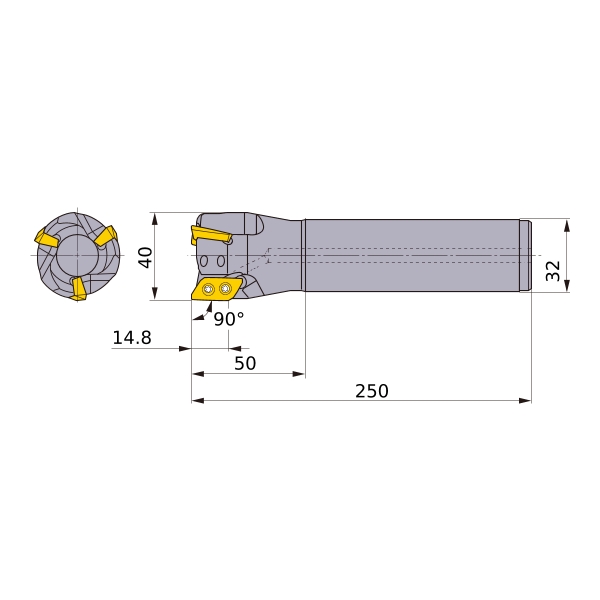

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 40
DCON 32
KAPR 90°
LF 250
LH 50
APMX 14.8
GAMP +14°
GAMF +21°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 41000
