Indexable End Mills >VFX6 >VFX6-063A04A031R

Indexable End Mills

VFX6
(CUTTING FOR TITANIUM ALLOY)

VFX6-063A04A031R

Product Information

  • Vertical inserts with high strength cutting edge.
  • Screw-on type.
  • High performance titanium alloy milling.

The actual product may differ from the displayed image.

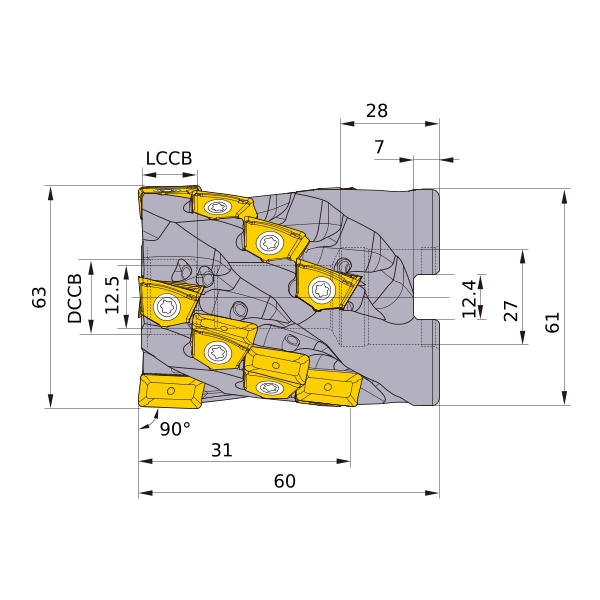

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 63
DCON 27
DCSFMS 61
DAH 12.5
KAPR 90°
L8 7
LF 60
CBDP 28
KWW 12.4
APMX 31
Cutting item count: CICT 8
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
VFX6-063A04A031R
CAD

3D Detail Model (STP,STL)
CAD data name Download
VFX6-063A04A031R
CAD

3D Light Model (STP,STL)
CAD data name RE Download
VFX6-063A04A031R_MR1_2
1.2 CAD CAD
VFX6-063A04A031R_MR1_6
1.6 CAD CAD
VFX6-063A04A031R_MR2_4
2.4 CAD CAD
VFX6-063A04A031R_MR3_2
3.2 CAD CAD
VFX6-063A04A031R_MR4
4 CAD CAD
VFX6-063A04A031R_MR5
5 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
