Indexable End Mills >VFX6 >VFX6-100A06A090R

Indexable End Mills

VFX6
(CUTTING FOR TITANIUM ALLOY)

VFX6-100A06A090R

Product Information

  • Vertical inserts with high strength cutting edge.
  • Screw-on type.
  • High performance titanium alloy milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

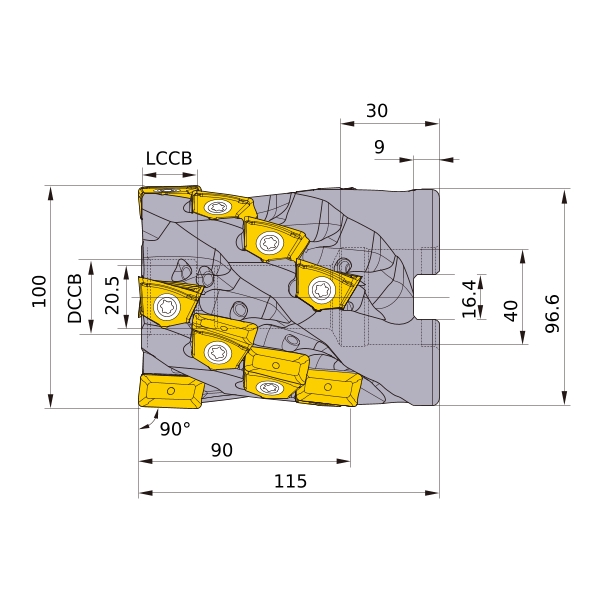

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 100
DCON 40
DCSFMS 96.6
DAH 20.5
KAPR 90°
L8 9
LF 115
CBDP 30
KWW 16.4
APMX 90
Cutting item count: CICT 36
Peripheral effective cutting edge count: ZEFP 6
2D Model (DXF)
CAD data name Download
VFX6-100A06A090R
CAD

3D Detail Model (STP,STL)
CAD data name Download
VFX6-100A06A090R
CAD

3D Light Model (STP,STL)
CAD data name RE Download
VFX6-100A06A090R_MR1_2
1.2 CAD CAD
VFX6-100A06A090R_MR1_6
1.6 CAD CAD
VFX6-100A06A090R_MR2_4
2.4 CAD CAD
VFX6-100A06A090R_MR3_2
3.2 CAD CAD
VFX6-100A06A090R_MR4
4 CAD CAD
VFX6-100A06A090R_MR5
5 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
