Indexable End Mills

APX3000_WELDON


APX3000R202WA20SA

Product Information

  • High accuracy, high quality vertical wall.

The actual product may differ from the displayed image.

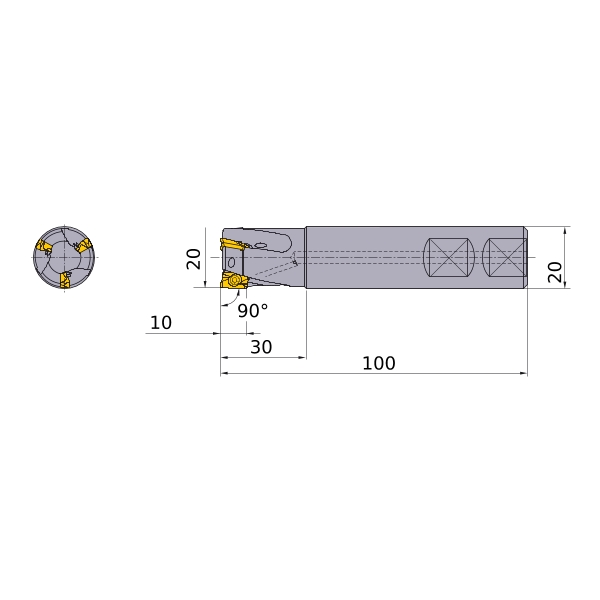

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 20
DCON 20
KAPR 90°
RMPX 6.9
LF 100
LH 30
APMX 10
GAMP +16°
GAMF +23°
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 18500
