Indexable End Mills

APX4000_LONG_WELDON
（For Deep Cutting）

APX4KR5012WA40S056A

Product Information

  • High accuracy, high quality vertical wall.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

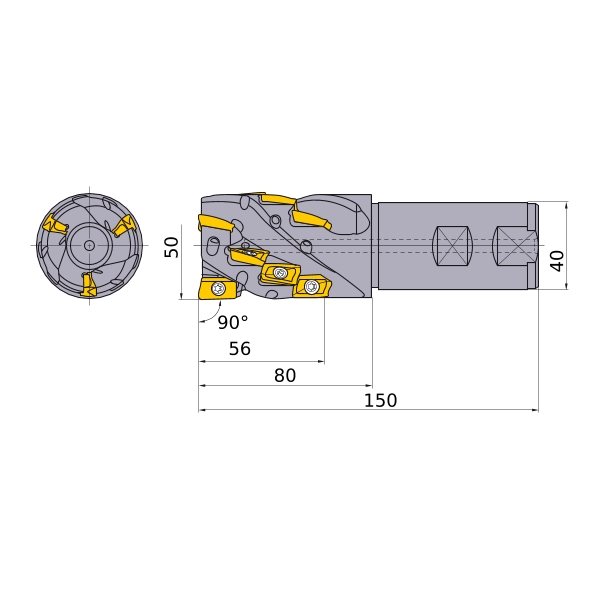

DC 50
DCON 40
KAPR 90°
LF 150
LH 80
APMX 56
GAMP +12°
GAMF +7°
Cutting item count: CICT 12
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
APX4KR5012WA40S056A
CAD
