Indexable End Mills

BRP4


BRP4NR323M16

Product Information

  • A wide variety of sizes.
  • Suitable for roughing of moulds and dies.
  • Max.depth of cut 5.5mm.
  • Multi functional milling.
  • 11°positive insert.
  • Round shape insert gives strong cutting edge.

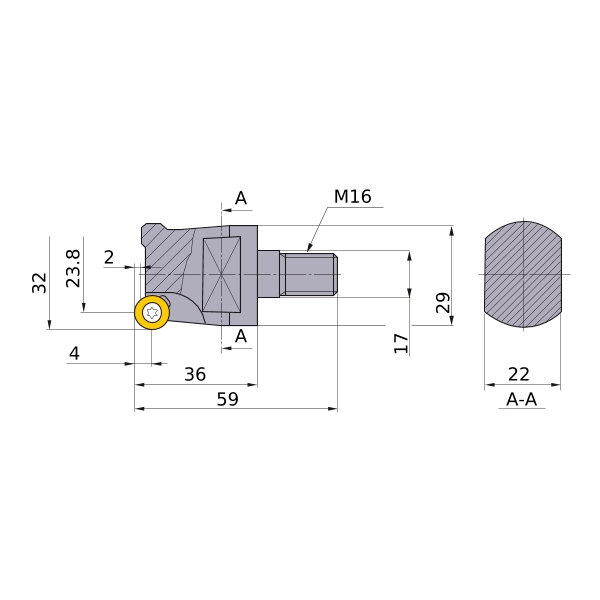

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
AZ 2
DC 23.8
DCX 32
DCON 17
DCSFMS 29
LF 36
OAL 59
S10 22
APMX 4
CRKS M16
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
