Indexable End Mills

SPX_SHELL_MM


SPX4-080A24A058RA

Product Information

  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

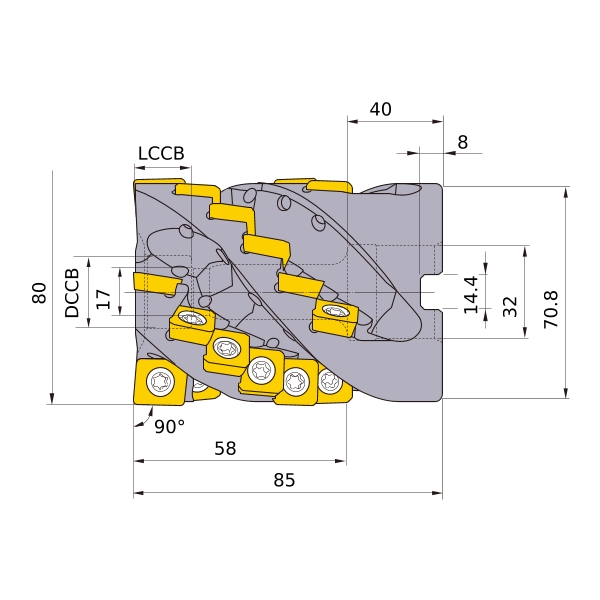

DC 80
DCON 32
DCSFMS 70.8
DAH 17
KAPR 90°
L8 8
LF 85
CBDP 40
KWW 14.4
APMX 58
Cutting item count: CICT 24
Peripheral effective cutting edge count: ZEFP 4
Face effective cutting edge count: ZEFF 4
2D Model (DXF)
CAD data name Download
SPX4-080A24A058RA
