Indexable End Mills

APX3000_LONG
（For Deep Cutting）

APX3KR4018SA42M055A

Product Information

  • High accuracy, high quality vertical wall.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

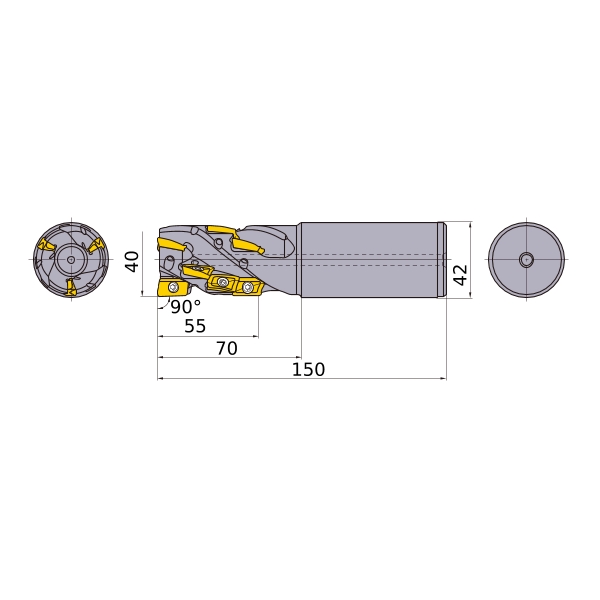

DC 40
DCON 42
KAPR 90°
LF 150
LH 70
APMX 55
GAMP +10°
GAMF -7.6°
WT 1.31
Cutting item count: CICT 18
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
APX3KR4018SA42M055A
CAD
