Indexable End Mills

APX3000_SHELL_MM


APX3K-050A20A046RA

Product Information

  • High accuracy, high quality vertical wall.

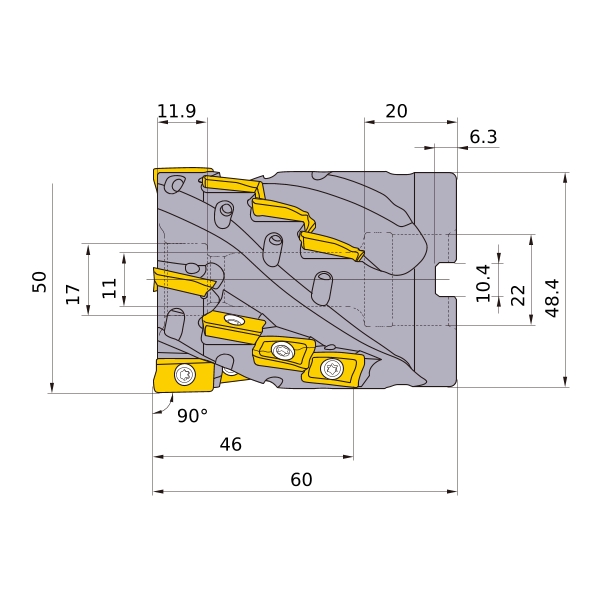

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 50
DCON 22
DCSFMS 48.4
DAH 11
DCCB 17
KAPR 90°
L8 6.3
LF 60
CBDP 20
LCCB 11.9
KWW 10.4
APMX 46
GAMP +10°
GAMF -6.7°
WT 0.54
Cutting item count: CICT 20
Peripheral effective cutting edge count: ZEFP 4
