Indexable End Mills

VPX200_WELDON
（Multi-functional Cutter for High Efficiency Machining）

VPX200R2002WA20S

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

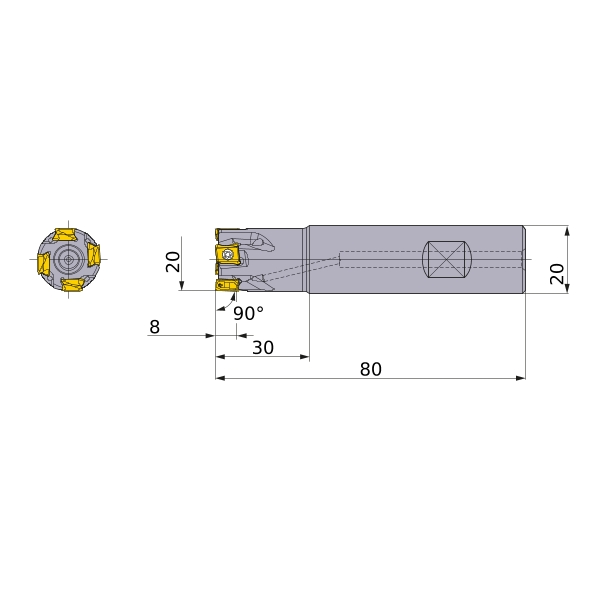

DC 20
DCON 20
KAPR 90°
RMPX 1.35°
LF 80
LH 30
APMX 8
WT 0.17
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Face effective cutting edge count: ZEFF 2
RPMX 33200
2D Model (DXF)
CAD data name Download
VPX200R2002WA20S
