Indexable End Mills

VPX300_WELDON
(Multi-functional Cutter for High Efficiency Machining)

VPX300R3203WA32S

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

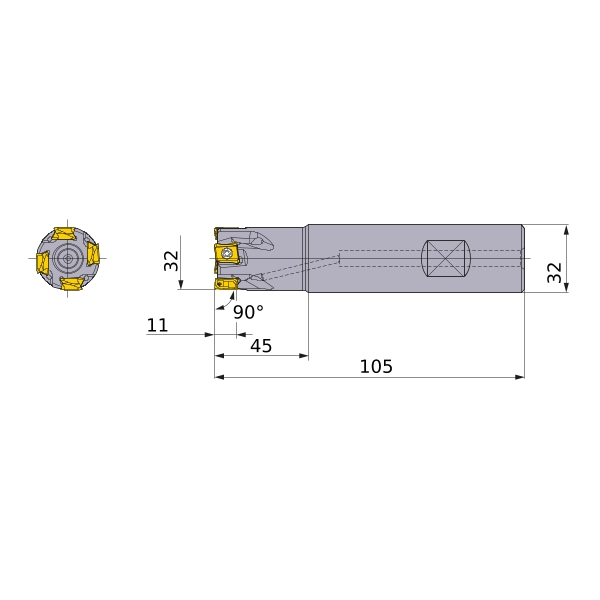

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 32
DCON 32
KAPR 90°
RMPX 1.47°
LF 105
LH 45
APMX 11
WT 0.55
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
Face effective cutting edge count: ZEFF 3
RPMX 20600
2D Model (DXF)
CAD data name Download
VPX300R3203WA32S
CAD

3D Detail Model (STP,STL)
CAD data name Download
VPX300R3203WA32S
CAD

3D Light Model (STP,STL)
CAD data name RE Download
VPX300R3203WA32S_MR0_2
0.2 CAD
VPX300R3203WA32S_MR0_4
0.4 CAD
VPX300R3203WA32S_MR0_8
0.8 CAD
VPX300R3203WA32S_MR1_0
1 CAD
VPX300R3203WA32S_MR1_2
1.2 CAD
VPX300R3203WA32S_MR1_6
1.6 CAD
VPX300R3203WA32S_MR2_0
2 CAD
VPX300R3203WA32S_MR2_4
2.4 CAD
VPX300R3203WA32S_MR3_0
3 CAD
VPX300R3203WA32S_MR3_2
3.2 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
