Indexable End Mills >VPX200_LONG >VPX200R252SA25S02106

Indexable End Mills

VPX200_LONG
（Multi-functional Cutter for High Efficiency Machining）

VPX200R252SA25S02106

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.

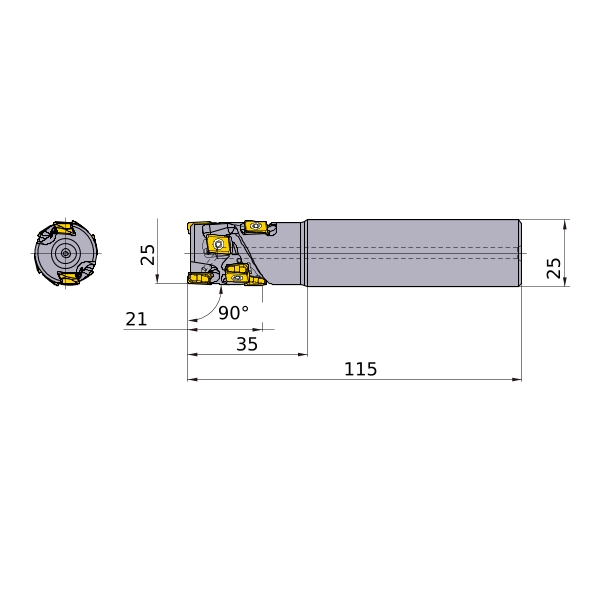

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 25
DCON 25
KAPR 90°
RMPX 0.97°
LF 115
LH 35
APMX 21
GAMP -25°
GAMF -6°
WT 0.39
Cutting item count: CICT 6
Peripheral effective cutting edge count: ZEFP 2
Face effective cutting edge count: ZEFF 2
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Insert for Rotating Tools

  • Spare Parts
