Indexable End Mills

VPX200_SHELL_MM
（Multi-functional Cutter for High Efficiency Machining）

VPX200-040A04A042R24

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

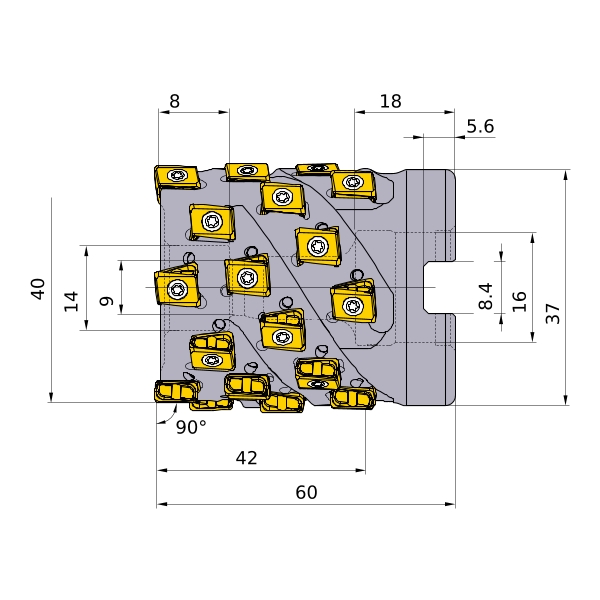

DC 40
DCON 16
DCSFMS 37
DAH 9
DCCB 14
KAPR 90°
RMPX 0.54°
L8 5.6
LF 60
CBDP 18
LCCB 8
KWW 8.4
APMX 42
GAMP -6°
GAMF ‒25°
WT 0.33
Cutting item count: CICT 24
Peripheral effective cutting edge count: ZEFP 4
Face effective cutting edge count: ZEFF 4
