Indexable End Mills >ASPX_SHELL >ASPX4-063A04A064RA24

Indexable End Mills

ASPX_SHELL
(CUTTING FOR TITANIUM ALLOY)

ASPX4-063A04A064RA24

Product Information

  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.

The actual product may differ from the displayed image.

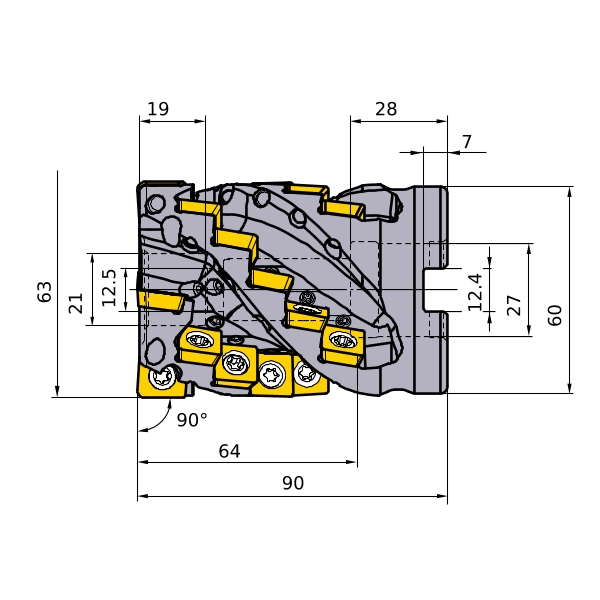

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 63
DCON 27
DCSFMS 60
DAH 12.5
DCCB 21
KAPR 90°
L8 7
LF 90
CBDP 28
LCCB 19
KWW 12.4
APMX 64
WT 0.99
Cutting item count: CICT 24
Peripheral effective cutting edge count: ZEFP 4
Face effective cutting edge count: ZEFF 4
2D Model (DXF)
CAD data name Download
ASPX4-063A04A064RA24
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASPX4-063A04A064RA24
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASPX4-063A04A064RA24_MR0_8
0.8 CAD
ASPX4-063A04A064RA24_MR1_2
1.2 CAD
ASPX4-063A04A064RA24_MR1_6
1.6 CAD
ASPX4-063A04A064RA24_MR2_4
2.4 CAD
ASPX4-063A04A064RA24_MR3_2
3.2 CAD
ASPX4-063A04A064RA24_MR4_0
4 CAD
ASPX4-063A04A064RA24_MR5_0
5 CAD
ASPX4-063A04A064RA24_MR6_35
6.35 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
