Indexable End Mills >WWX200 >WWX200R2502SA25L

Indexable End Mills

WWX200
（90˚ FACE MILLING CUTTER）

WWX200R2502SA25L

Product Information

  • The indexable inserts with 6 usable cutting edges offer lower cost per cutting edge
  • Innovative geometry generates low cutting forces.
  • reliable machining
  • The set bolt is built in.

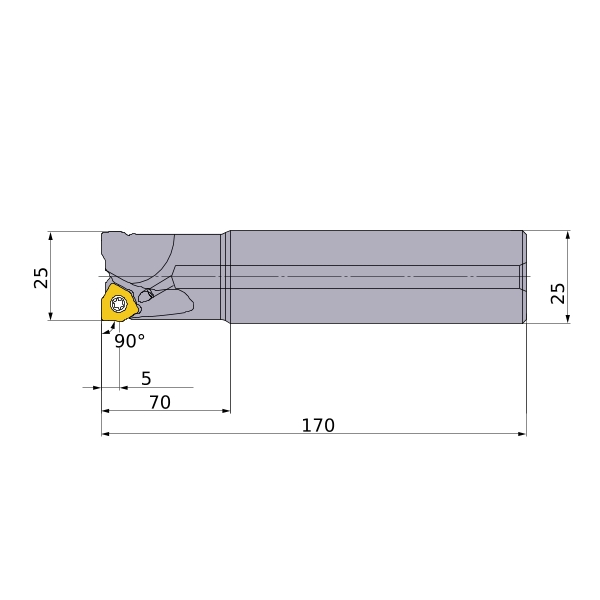

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 25
DCON 25
KAPR 90°
LF 170
LH 70
APMX 5
GAMP -6°
GAMF -18°
WT 0.6
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 29600
2D Model (DXF)
CAD data name Download
WWX200R2502SA25L
CAD
