External Cutting >BTAH >BTAHR1010-50

External Cutting

BTAH


BTAHR1010-50

Product Information

  • Screw-on type.
  • For gang type tool posts.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

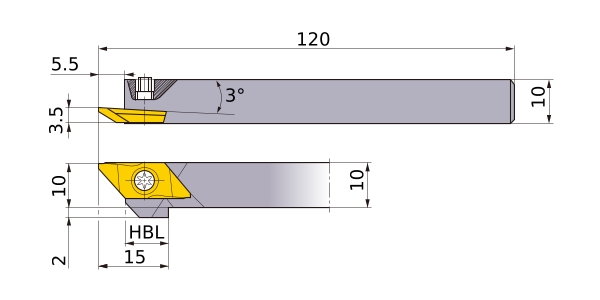

B 10
LF 120
LH 15
CDX 5.5
H 10
HF 10
HBH 2
WF2 3.5
Peripheral effective cutting edge count: ZEFP 1
Insert Number BTAT
2D Model (DXF)
CAD data name Download
BTAHR1010-50
CAD
