External Cutting >BTVH >BTVHR1616-75

External Cutting

BTVH


BTVHR1616-75

Product Information

  • For gang type tool posts.
  • Screw-on type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

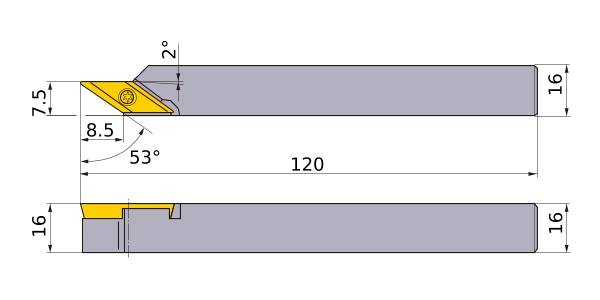

B 16
KAPR 53°
LF 120
H 16
HF 16
WF2 7.5
S10 8.5
Peripheral effective cutting edge count: ZEFP 1
Insert Number BTVT
2D Model (DXF)
CAD data name Download
BTVHR1616-75
CAD
