External Cutting >BTVH >BTVHR1010-75F

External Cutting

BTVH


BTVHR1010-75F

Product Information

  • For gang type tool posts.
  • Screw-on type.

The actual product may differ from the displayed image.

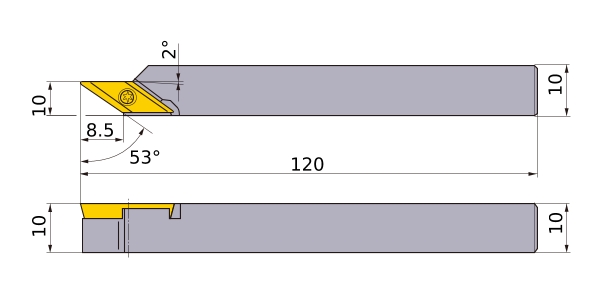

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
B 10
KAPR 53°
LF 120
H 10
HF 10
WF2 10
S10 8.5
Peripheral effective cutting edge count: ZEFP 1
Insert Number BTVT
2D Model (DXF)
CAD data name Download
BTVHR1010-75F
CAD
