External Cutting >DTGN >DTGNR1616H16-T

External Cutting

DTGN


DTGNR1616H16-T

Product Information

  • New double clamp type.
  • Small insert series.
  • Economical negative insert.
  • Holds inserts securely.
  • Excellent cutting edge tolerance.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

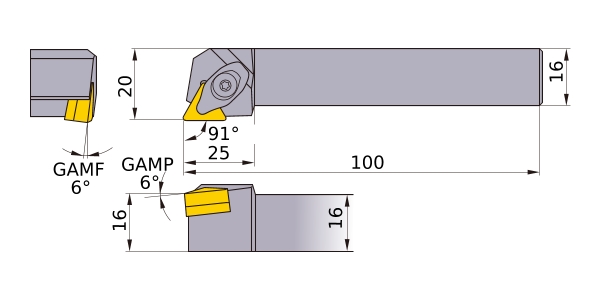

B 16
KAPR 91°
LF 100
LH 25
WF 20
H 16
HF 16
Peripheral effective cutting edge count: ZEFP 1
Insert Number TN__1603
2D Model (DXF)
CAD data name Download
DTGNR1616H16-T
CAD
